Rail anchors are fixed to the underside of the rail base plate and against the sides of the sleepers to prevent longitudinal movement of the rail. Our rail anchors are made from one-piece spring steel or equivalent material.

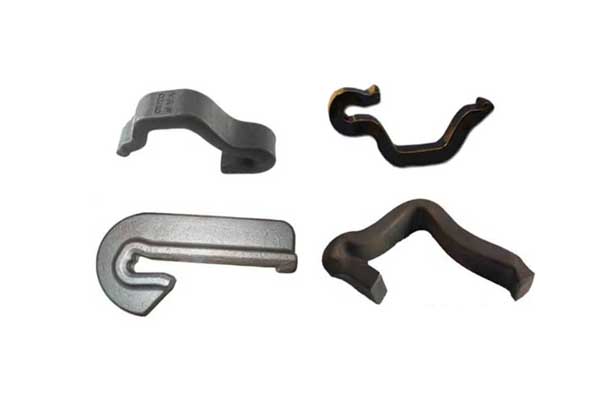

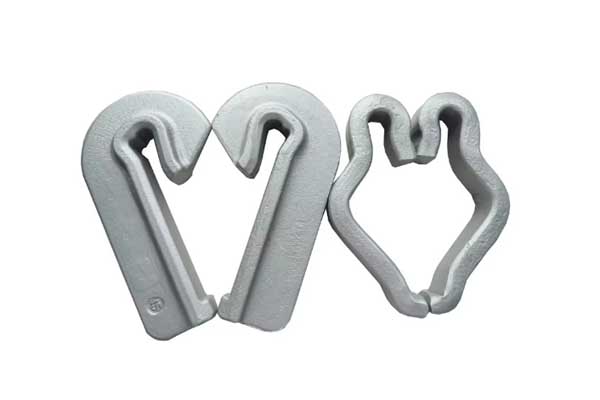

Kingrail Parts is a professional rail anchor manufacturer. We can provide a variety of rail anchors, including T-shaped rail anchors or V-shaped rail anchors. We can also forge or cast other types of rail anchors according to customer requirements.

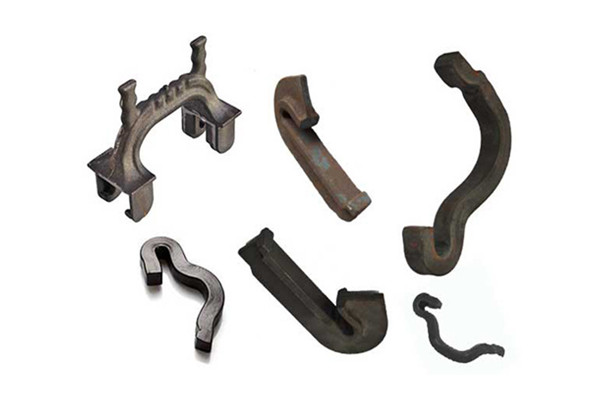

Our rail anchors are manufactured to specific rail weights and base widths and are available in two types: drive-on rail anchors and spring-loaded rail anchors. Our main range of drive on rail anchors (driven on using standard spikes) include: Improved Fair rail anchor, Unit 5 rail anchor and Channeloc rail anchor..
* Rail anchors for 50kg, 85kg, UIC54, UIC60, 90/91lb, 115RE and 136RE rails
| Type |
Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers’ drawings.
|
||
|---|---|---|---|
| Material | 60Si2MnA | 45# | QT500-7 |
| Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03
|
C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
| Surface | plain (oiled),color painting, zinc painted or HDG | ||
| Standard | AS1085.10-20002 , DIN, ISO-9001 | ||

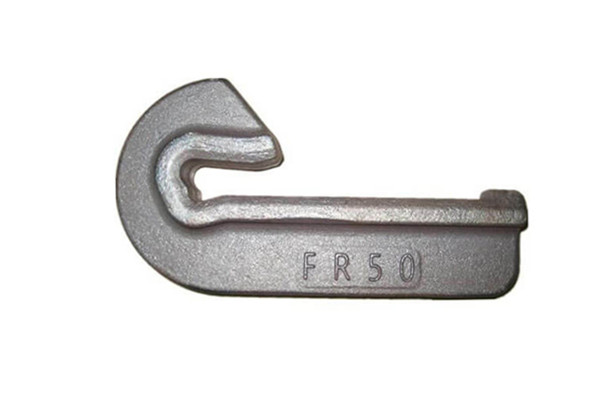

* Rail anchors for 50kg, 70lb, 80lb, 90lb and 91lb rails
| Type | Material | Weight(g/pc) |
|---|---|---|
| 50Kg | 60Si2MnA | 800 |
| 70LB | 60Si2MnA | 800 |
| 85LB | 60Si2MnA | 800 |
| 90/91LB | 60Si2MnA | 800 |

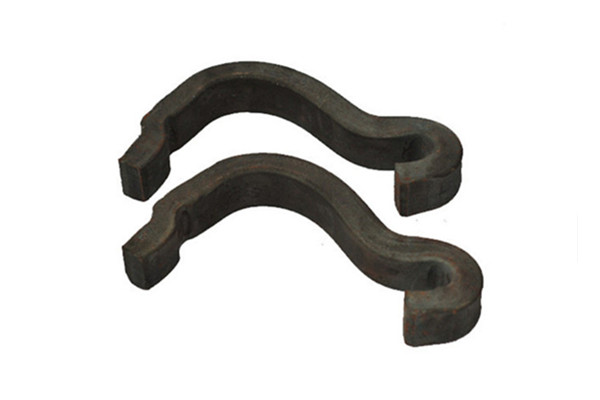

* Rail anchor for Russia
Material: QT400-15
Standard: TOCT 7293-85
