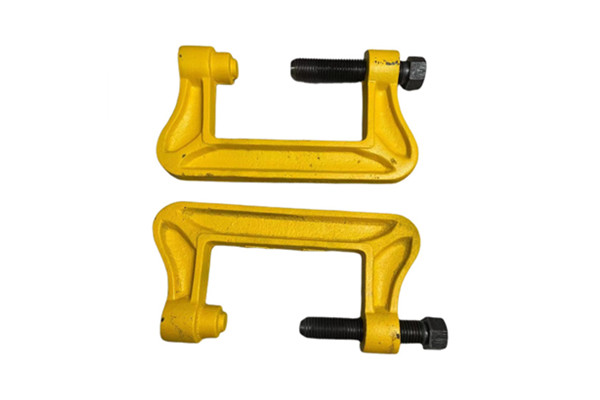

Emergency rail clamp is used to repair rail damage or cracks quickly, easily, and reliably. It is convenient for rail installation.
Kingrail Parts can provide high quality emergency rail clamps. Our clamp is suitable for the speed of the maximum 160 km/h.
Specifications:
|
Product name
|
Emergency rail clamps
|
|
Product weight
|
6.5KG
|
|
Material
|
cast
|
|
Scope of application
|
rail first aid
|
|
Applicable rail type
|
43/50/60 rail
|
|
Locking torque
|
≥120N.m
|
|
Product features
|
strong clamping force and high strength quality assurance
|
Features:
1. This clamp can be used for a long time without maintenance.

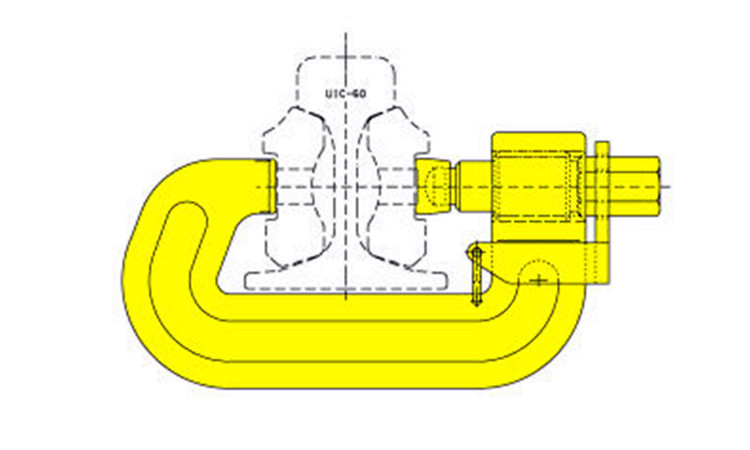

2. Generally used for a variety of rails, such as: UIC60, UIC54, S54, S49, SBBIII, SBBIV, SBBVI, Area136RE, etc.
3. The clamp is suitable for the outline of the maximum 160mm rail. Tighten the screw to 580nm.
4. Anti -theft Protection: Protect your footprints from theft and destruction.
5. If you have anti -theft versions, use a spindle lock to fix the spindle with padlock. (All the delivery padlocks have the same keys.)
6. Wrench opening: Your system will be our standard.
