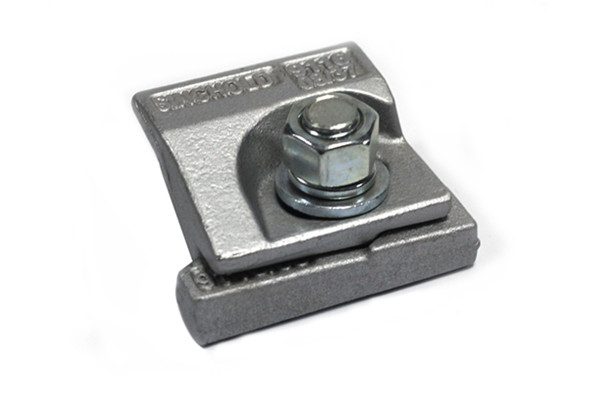

Single-piece rail clips are designed to secure tees and crane rails to ties, beams, channels and other support structures. Kingrail Parts manufactures a wide range of rail clips used in the railway industry, overhead cranes and material handling systems.
Our weldable rail clips provide flexibility and ease of installation. We can also customize rail clips in oval, non-standard round or other specific hole shapes upon request.
Specification:
|
Clip No. |
Rail |
Weight |
Bolt |
|
114 |
12, 16, 20, 25, 30, 40 lb ASCE |
0.24lb / 0.11kg |
5/8" |
|
103 |
55, 60, 65, 70, 75, 80, 85, 90, 100 lb ASCE & ARA-RA |
0.58lb / 0.26kg |
3/4" |
|
106 |
60, 65, 70, 75, 80, 85, 90, 100 lb ASCE & ARA-RA |
1.15lb / 0.52kg |
3/4" |
|
128 |
80, 90, 100 ARA-RB |
0.89 lb / 0.40kg |
3/4" |
|
62 |
100 lb ASCE, 100, 110, 115, 120, 130, 131, 132, 136 lb RE, 104, 105 lb Crane Rail |
1.3lb / 0.59kg |
1" |
|
175 |
175 lb Crane Rail |
2.1lb / 1.1kg |
1" |
