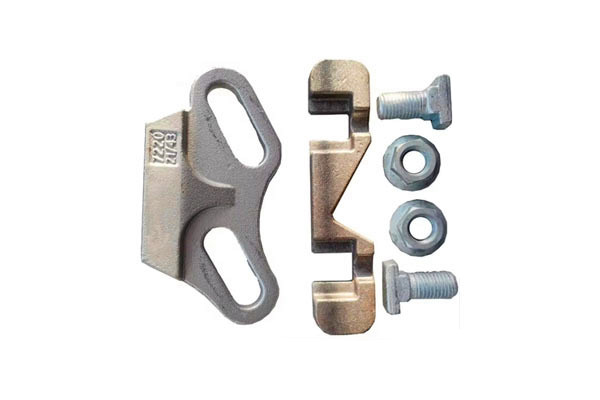

Kingrail Parts offers a wide range of Gantrail rail clips to suit all crane rails, including heavy duty applications. These rail clips simplify rail maintenance by making it easy to adjust the rail during and after installation. They provide surge suppression and dual tilt to prevent lateral movement.
Whether you require a welded or bolted rail clips, our team will assist you in selecting the ideal Gantrail clips for your project.
| REF N0. | X |
Y THIN UNT |
Z |
WEIGHT KG |
| 9120/15/38 | 38 | 51 | 30 | 1.52 |
| S (rubber) | RAIL WITH PAD PLAN | 14mm | ||
| H(rubber) | RAIL WITH0UT PAD PLAN | 21mm | ||
|
|
F |
C |
A |
RAIL |
1.CLIP REFERENCE |
2.CLIP REFERENCE |
|
P 50 |
132 |
70 |
152 |
50 |
9120/15/38 (s) |
9120/15/38 (H) |
|
QU70 |
120 |
70 |
120 |
52.8 |
9120/15/38 (S) |
9120/15/38 (H) |
|
QU 80 |
130 |
80 |
130 |
63.69 |
9120/15/38 (S) |
9120/15/38 (H) |
|
QU 100 |
150 |
100 |
150 |
89 |
9120/15/38 (S) |
9120/15/38 (H) |
|
QU120 |
170 |
120 |
170 |
118.5 |
9120/15/38 (S) |
9120/15/38 (H) |
|
A100 |
200 |
100 |
95 |
74.3 |
9120/15/38 (S) |
9120/15/38 (H) |
|
A120 |
220 |
120 |
105 |
100 |
9120/15/38 (S) |
9120/15/38 (H) |
|
A150 |
220 |
150 |
150 |
150.3 |
9120/15/38 (S) |
9120/15/38 (H) |
|
ISCR 100 |
150 |
102 |
150 |
89 |
9120/15/38 (S) |
9120/15/38 (H) |
|
ISCR 120 |
170 |
120 |
170 |
118.5 |
9120/15/38 (s) |
9120/15/38 (H) |
|
GCR 183 |
280 |
75 |
120 |
183.06 |
9120/15/38 (s) |
9120/15/38 H) |
|
CR 73 |
140 |
100 |
135 |
73.3 |
9120/15/38 (s) |
9120/15/38 (H) |
|
CR 100 |
155 |
120 |
150 |
100.2 |
9120/15/38 (s) |
9120/15/38(H) |
|
JIS 50 N |
127 |
64 |
153 |
50.4 |
9120/15/38 (s) |
9120/15/38 (H) |
|
JIS 60 |
145 |
64 |
174 |
60.8 |
9120/15/38 (S) |
9120/15/38 (H) |
|
S41 |
125 |
67 |
138 |
41.4 |
9120/15/38 (s) |
9120/15/38 (H) |
|
S 49 |
125 |
67 |
149 |
49.43 |
9120/15/38 (s) |
9120/15/38 H) |
|
MRS 67 (135CR) |
132 |
79 |
146 |
67 |
9120/15/38 (S) |
9120/15/38 (H) |
|
MRS 86 |
165 |
102 |
102 |
85.5 |
9120/15/38 (S) |
9120/15/38 (H) |
|
MRS 87 B |
152 |
102 |
152 |
86.8 |
9120/15/38 (s) |
9120/15/38 H) |
|
68 kgAS |
152 |
73 |
186 |
67.6 |
9120/15/38 (S) |
9120/15/38 H) |
Contact us
Please contact us for more information and quotes.
Inquiry Now
