MX15 Rail Clip

The MX15 rail clip is an adjustable crane rail clamp that welds and interlocks.We can also customize rail clip bolts according to customer specifications.

+86 15603721115 tyler@kirail.com Inquiry Now

Product Description

The MX15 rail clip is an adjustable crane rail clamp that welds and interlocks.

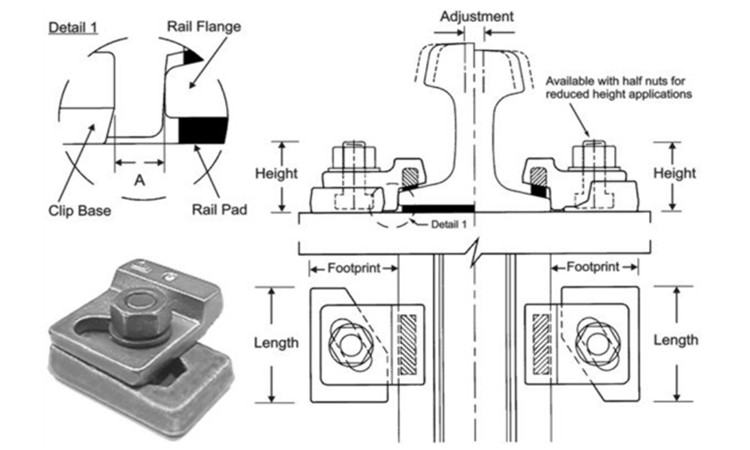

Drawing:

Rail*1 (American sections)	clip Type			Bolt Dia.	Adjustment		Lateral Resistance
	No Pad	Pad		qrade 5 holt torque 150 ft-Ibs
40,608,085	MX15/***	MX15/***/P		5/8"	1/2"(+1/4")		15 kips
104,105,135	MX15/**	N/A²		5/8"	1/2"(+1/4")		15 kips
…The rail size should be indicated directly after the first forward slash (i.e.MX15160 for the 60 ASCE rail) *1 For other rail sizes please consult Molyneux.
“2 Please consult Molyneux for clip alternatives for applications that require 104,105 or 135 CR rail with pad.
Clip Dimensions
Clip	Height		Footprint		A	Length
MX15/Series	21/8" lower height is available		25/16"		5/16"	31/8”
