Rail clips are used with railway sleepers to fix the rails on both sides. Rail clips are usually made of forged spring steel and manufactured by hot forging process.

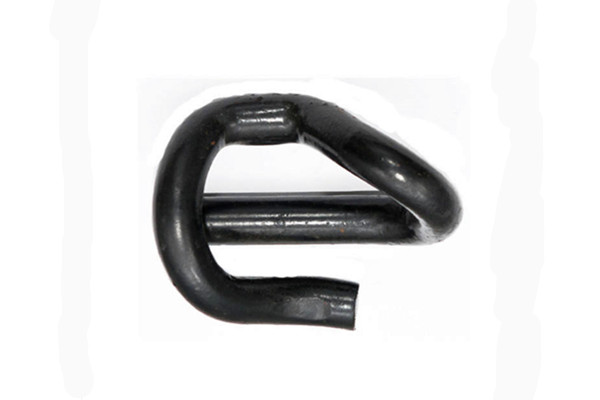

We manufacture a wide variety of high-quality rail clips. PR309A Rail Clip is one of PR rail clip.
Specifications:
Material: 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7
Diameter:19mm
Weight: 0.8
Hardness: 44-48HRC
Standard: GB/T 1222, DIN 17221
Fatigue life: 5 million cycles without breaking
Surface: plain (oiled), oxidized black, painted
Application: rail fastening system
Rail Clip Production Process:
Raw material- shearing- heating- forming- hardening- tempering- inspection- packing.
