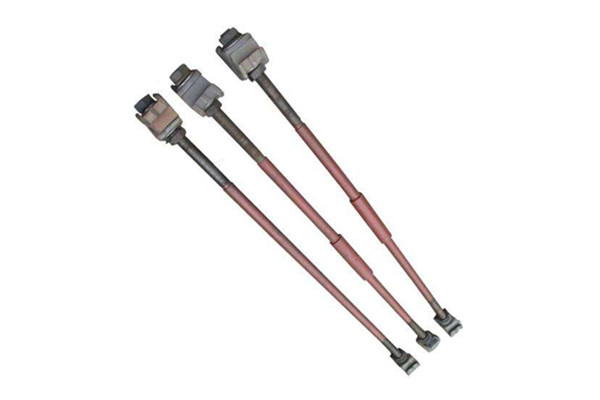

Gauge tie rods are often used to prevent rail expansion or tilting and to stabilize rails within a certain rail gauge.
We can supply standard gauge tie rods in both single-ended and double-ended types, both non-insulated and insulated, with ISO9001:2008 certificate and CRCC authorization.
We also produce various specifications of gauge tie rods, such as AREMA 1-1/4” insulated gauge tie rods, and other gauge tie rods used in UIC and BS rails, with lengths of 600mm, 762mm, 900mm, 1435mm, etc.
Specification:
| No. | Part | Quantity | Specification | Material |
| 1 | nut | 4 | M30 M36 | 3# |
| 2 | rod | 1 | M30 M36 | 3# |
| 3 | iron jaws | 4 | I type II type | KTH350-10 |
| 4 | flat washer | 4 | M30 M36 | 3# |
| 5 | spring washer | 4 | M30 M36 | 65Mn |
Application: 43, 50, 60, 75kg/m rail
Working temperature: -40~60 degrees Celsius
Standard: TB/T1780-86
We can also customize gauge tie rods according to customer drawings and drawings.
