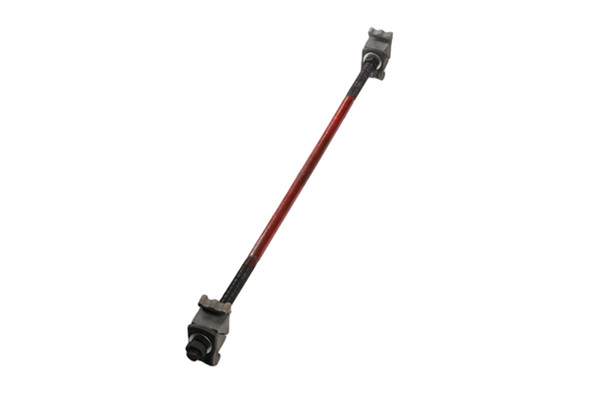

Rail gauge rod is a rod used to connect two rails at the bottom of the rail to prevent the rails from tilting and keep the rails at a certain rail gauge.
As a professional manufacturer, Kingrail Parts can provide you with high strength, durability and chemically stable gauge rods that are easy to install and maintain.
We can offer standard gauge tie rods for 56-½" rail and 60-140 lb rail, both non-insulated and insulated. We can also customize gauge tie rods according to customers' drawings and specific requirements.
Specification:
| No. | Part | Quantity | Specification | Material |
| 1 | nut | 4 | M30 M36 | 3# |
| 2 | rod | 1 | M30 M36 | 3# |
| 3 | iron jaws | 4 | I type II type | KTH350-10 |
| 4 | flat washer | 4 | M30 M36 | 3# |
| 5 | spring washer | 4 | M30 M36 | 65Mn |
Application: 43, 50, 60, 75kg/m rail
Rail gauge: 600, 762, 900 and 1450
Diameter: 20, 22, 24, 28, 32, 36, etc.
Specifications: 20×870, 22×880, 22×1050, 24×1050, 24×1250, 28×1810, 28×1850, 32×1810, 32×1850, 36×1850
