Designed specifically for single girder cranes and monorail beams, Kingrail Parts offers single flange crane wheels of the highest quality and durability. Our single flange wheels are available with flat flanges or with integrally machined ring gear to suit individual applications and working environments.
To ensure stability and wear resistance, our single flange wheels are made from ductile iron and cut with CNC machines to ensure component accuracy. Our single flange wheels comply with international standards such as DIN.

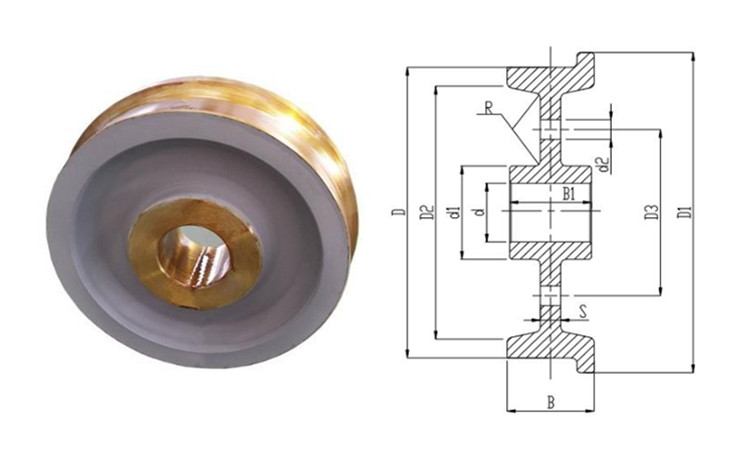

Specification:
|
Model N |
Overall Size(mm) |
Detail Size(mm) |
|||||||||
|
D |
D1 |
B |
B1 |
d |
S |
d1 |
d2 |
D2 |
D3 |
R |
|
|
DL-160 |
160 |
190 |
85-100 |
80-95 |
45 |
20 |
70 |
|
≤120 |
|
5 |
|
55 |
85 |
||||||||||
|
DL-200 |
200 |
230 |
85-100 |
80-95 |
60 |
20 |
95 |
—— |
≤160 |
— |
|
|
80 |
125 |
||||||||||
|
DL-250 |
250 |
280 |
85-110 |
80-105 |
70 |
25 |
110 |
20 |
≤210 |
175 |
10 |
|
90 |
140 |
||||||||||
|
DL-315 |
315 |
355 |
95-130 |
90-120 |
100 |
30 |
160 |
25 |
≤265 |
225 |
|
|
110 |
175 |
||||||||||
|
DL-400 |
400 |
440 |
105-145 |
100-130 |
110 |
35 |
175 |
35 |
≤340 |
270 |
|
|
120 |
190 |
||||||||||
|
DL-500 |
500 |
540 |
105-145 |
100-130 |
120 |
40 |
190 |
40 |
≤430 |
325 |
20 |
|
130 |
205 |
||||||||||
|
DL-630 |
630 |
680 |
105-155 |
100-150 |
140 |
45 |
220 |
50 |
≤560 |
420 |
|
|
160 |
255 |
||||||||||
