Kingrail Parts was established to provide the rail industry with the highest quality fasteners. We manufacture and supply rail fasteners such as bolts, spikes, etc. for you.
From the very beginning, Kingrail Parts has been dedicated to the global rail market. We offer a complete line of fasteners for your rail bridges, level crossings and related applications. We have the ability to manufacture custom bolts and hardware from stainless steel; low, medium and high carbon steels; aluminum, heat-resistant alloys and other metals. We're sure we can make your custom components fit perfectly!
1. Button Head Oval Neck Track Bolts
Such bolts are also known as square bolts or rail anchor bolts. These are used to secure the rail joint to the connecting rail. We can customize this bolt; however, it is most popular in ½ to 1-1/8 inch diameters. Galvanized or electroplated to increase durability and ultimately extend the life of the bolt.
* Compliant with NYCTA regulations
* AAR certified
* Compliant with IFI specification
|
Diameter |
5/16” – 2 1/8” |
|
Thread |
0 – 6 “ Rolled Thread. Cut Thread any length |
|
Length |
Minimum 1 ½” to whatever length customer desires |
|
Grade |
Grade 2, Grade 5, Grade-8, B-7, BC, BD, 8.8, 10.9, 12.9, A-574 |
|
Finish |
Any type of plating customer desires for oxidation prevention |
|
Weight |
Varies |
|
Metric Size Range |
8mm-50mm Diameter |
|
Tensile Requirements |
Mechanical testing available |
|
Material |
1018, 1045, 4140. Any material customer desires |

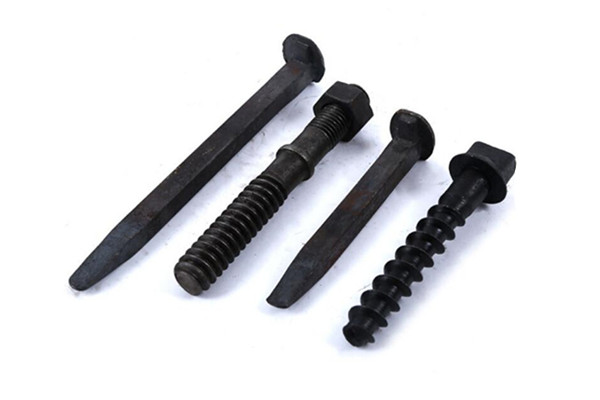

2. Rail Spikes
The shape of this bolt is roughly chiseled, with a flat tip, L-shaped head, and a square shank. It is driven with an edge perpendicular to the texture, which provides greater resistance to loosening. The diameter range is mostly 5/16-5/8. Our Spikes are consistent and easy to use and install.
* Compliant with NYCTA regulations
* AAR certified
* Compliant with IFI specification
|
Diameter |
5/16-5/8 Typical. Larger if Required |
|
Thread |
Standard Thread Lengths or No Thread |
|
Length |
Typical is 6” Can be made to customer specs |
|
Grade |
GR-2, GR-5 or GR-8 |
|
Finish |
Galvanized or Plain Finish |
|
Weight |
Varies |
|
Metric Size Range |
8mm up to 50mm Diameter |
|
Tensile Requirements |
Mechanical Testing Available upon customer request. |
|
Material |
1018, 1045, 4140. Any material customer desires |
3. Frog bolt (square head)
Frog Bolts are also known as Switch & Frog or Square Head. It is a track bolt used in railway turnouts. Our Frog Bolt is the fastener of choice for our US and UK customers. Diameters typically range from 1 to 1-3/8” or 25mm-35mm. Frog Bolts are high strength and thoroughly machined through our heat treatment, reducing risk and increasing rail safety.
* Compliant with NYCTA regulations
* AAR certified
* Compliant with IFI specification
|
Diameter |
Typical 1” – 1 3/8” Can go larger or smaller |
|
Thread |
Standard Thread Lengths |
|
Length |
Typical 3-6” |
|
Grade |
GR-5, GR-8 Typical Can make any grade |
|
Finish |
Galvanized, any plating, no finish |
|
Weight |
Varies |
|
Metric Size Range |
Typical 25mm to 35mm |
|
Tensile Requirements |
NYCTA SPECS. Mechanical Testing available upon customer request |
|
Material |
1045, 4140 Typical. Any material customer desires |
4. Frog bolt (hexagon head)
Hex bolts are a type of track bolts used as part of railway turnouts. Our frog bolts are high strength and fasten to rail frogs to reduce risk and improve rail safety. The length of this part can vary and Kingrail Parts can produce any desired length. The hex head works the same way as the square head frog bolt. These bolts protect the train from collisions and are very durable against the elements. Installation is simple and efficient as our standardized engineering can easily accommodate mating parts.
* Compliant with NYCTA regulations
* AAR certified
* Compliant with IFI specification
|
Diameter |
7/8”, 1”, 1 1/8”, 1 ¼”, 1 3/8” |
|
Thread |
Standard or Customer Spec |
|
Length |
Varies can produce to whatever length |
|
Grade |
GR-5, GR-8 Typical Can make any grade |
|
Finish |
Plain or Galvanized |
|
Weight |
Varies |
|
Metric Size Range |
22mm through 35mm |
|
Tensile Requirements |
Mechanical testing available upon customer requirements or specs |
|
Material |
1045, 4140 Typical. Any material customer desires |
5. Screw Spikes
Screw spikes are used to fasten ribbed base and tie plates to wooden sleepers and play an important role in railway fastening systems with the help of plastic dowels. In terms of screw spikes specifications, we meet all the different standards for railway tracks. They can be galvanized or black oxide finish. Our in-house tooling can solve any need with lag threads. We customize lengths for any application and still ensure fast delivery.
* Compliant with NYCTA regulations
* AAR certified
* Compliant with IFI specification
|
Diameter |
½” to 2” |
|
Thread |
Lag Threads |
|
Length |
Any length the customer desires |
|
Grade |
GR-2, GR-5 |
|
Finish |
Galvanized, Black Oxide |
|
Weight |
Varies |
|
Metric Size Range |
12.7-50 mm in diameter |
|
Tensile Requirements |
Mechanical testing available upon customer request |
|
Material |
1018, 1045 not limited |
|
Point/Chamfer |
Per customer requirement |
Contact us
Please contact us for more information and quotations.
