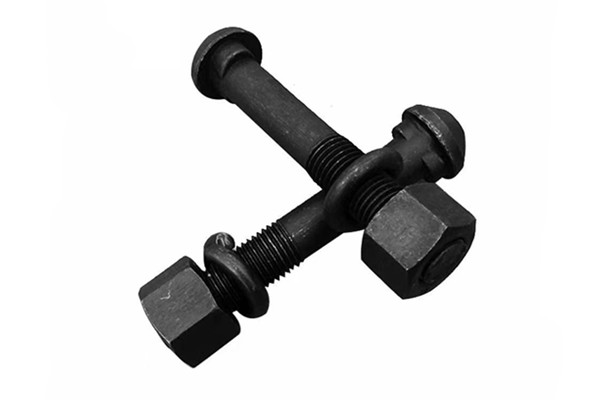

Fish bolts with rail fishplates for connecting 2 rail tracks. Kingrail Parts can supply Fishbolts in various sizes manufactured to various International Standards such as BS, ASTM and Din etc.
Specifications:
Standards: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS, etc.
Grades: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc.
Size: M12-M24 or according to customer requirements
Length: 45mm-145mm or according to customer requirements
Surface: normal, blackened, galvanized, or according to customer requirements
Application: Used to fix the rail fishplate on the rail.
Non-standard OEM is ok if buyers provide drawings or samples.
Our best selling fishbolts come in two types: button head oval neck fish bolts and diamond neck fish bolt.
Button Head Oval Neck Fish Bolt
|
Diameter |
1/2" |
1/2" |
1/2" |
5/8 |
3/4 |
3/4 |
3/4 |
7/8 |
7/8 |
1 |
1 |
1 |
1-1/16 |
1-1/8 |
|
Length |
1-3/4" |
2" |
2-1/4 |
2-1/2 |
3 |
3-1/2 |
4 |
4-1/2 |
5 |
5 |
5-1/2 |
6 |
6 |
6-1/2 |
|
Weight (Kg) |
0.097 |
0.1 |
0.112 |
0.183 |
0.328 |
0.339 |
0.356 |
0.559 |
0.593 |
0.8 |
0.839 |
0.879 |
0.995 |
1.186 |
Diamond Neck Fish Bolts
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
Note: All fish bolt dimensions given in inches. |
||
Other Fish Bolt Types and Details
Russian Standard Fish Bolt
|
Russia scale fish bolt |
Bolt Details |
|
Size |
27x160 |
|
Material |
Tensile stress 381KN |
|
Standard |
GOST 11530 |
|
Surface treatment |
Plain oiled |
Square Head Fish Bolt
|
Square head fish bolt |
Bolt Details |
|
Size |
M20, L as ordered |
|
Grade |
4.6, 5.6 |
|
Standard |
DIN5903-2 Type B |
|
Surface treatment |
Zinc plated, hot dip galvanized |
Contact us
Please contact us for more information and quotations.
