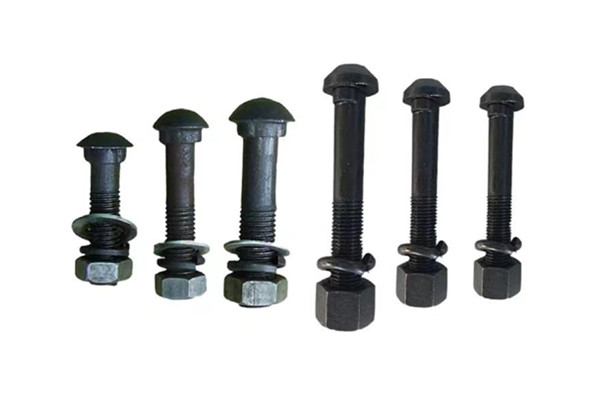

Kingrail Parts' button head oval neck track bolts are manufactured to AREMA specifications and feature button heads, oval necks and rolled threads.
Our track bolts are suitable for standard full toe, toeless, splice bars, style joint bars. They can be used on any type of track including mainline, industrial spurs and sidings.
Specifications:
| Bolt Size | Rail Weight | Avg Units/Keg |
| ½ x 2-1/2’’ | 20 to 25 | 208 |
| 5/8 x 2-1/2’’ | 30 to 40 | 128 |
| 5/8 x 3’’ | 30 to 40 | 115 |
| ¾ x 3’’ | 40 to 45 | 75 |
| ¾ x 3-1/2’’ | 50 to 60 | 67 |
| ¾ x 4’’ | 70 to 75 | 62 |
| 7/8 x 4-1/2’’ | 85 to 90 | 41 |
| 7/8 x 5’’ | 90 to 100 | 38 |
| 7/8 x 5-1/2’’ | 90 to 100 | 37 |
| Bolt Size | Rail Weight | Avg Units/Keg |
| 15/16 x 5-1/4’’ | 90 to 100 | 33 |
| 15/16 x 5-1/2’’ | 90 to 100 | 31 |
| 1 x 5’’ | 90 to 100 | 28 |
| 1 x 5-1/2’’ | 110 to 130 | 27 |
| 1 x 5-3/4’’ | 110 to 130 | 27 |
| 1 x 6’’ | 131 to 140 | 25 |
| 1-1/16 x 6’’ | 131 to 140 | 24 |
| 1-1/16 x 6-1/4’’ | 131 to 140 | 22 |
| 1-1/8 x 6’’ | 131 to 140 | 19 |
| 1-1/8 x 6-1/2’’ | 131 to 140 | 18 |
