The 60E1 (UIC60) rail model is manufactured according to the European standard EN 13674-1. This is a T-section rail (flat-bottomed rail) mainly used for medium and heavy traffic.
60E1/UIC60 rail has the characteristics of good ductility, high fatigue strength and moderate fracture toughness. It is a very popular rail. It is widely used in high-speed railways in France and Germany.
UIC60 Rail Specification:
Material: R200, R260, R260MN, R350HT
Weight: 60.21kg/m
Length: 12-25m
Grade: 900A/1100
Hardness: R260, R320
Standard: BS, EN 13674-1
Bolt hole diameter: 30mm
Type: Heavy Rail
Certificate: ISO9001:2008
Application: railway transportation
Dimensions of UIC60 Rail:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 60E1 (UIC60) | EN 13674 - 1 | 172,00 | 150,00 | 72,00 | 51,00 | 16,50 | 76,70 | 60,21 |

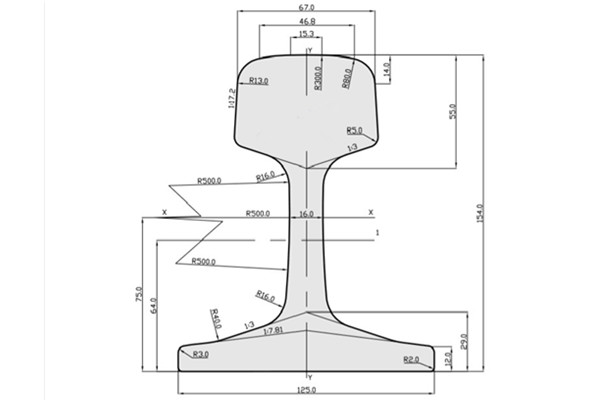

Drawings
Steel Rail Supplier:
Kingrail Parts is a professional rail manufacturer in China. We can produce standard rails and hanging rails of various specifications. Welcome to consult.
