The 90 lbs rail(90 pound rail) is a type of railroad track recommended by the American Railroad Association (ARA) for light freight rail lines, low frequency use rails, or light rails. 90 lb rails are widely used in North America.
90 LBS Rail Specifications:
Type: Heavy Rail
Name: 90 RA Rail, 90 LBS Rail, 90 ARA-A Rail
Material: 900A/1100
Weight: 44.65kg/m
Length: 12-25m
Usage: Railway rail, crane rail, mining tracks, automatic warehouse, etc.

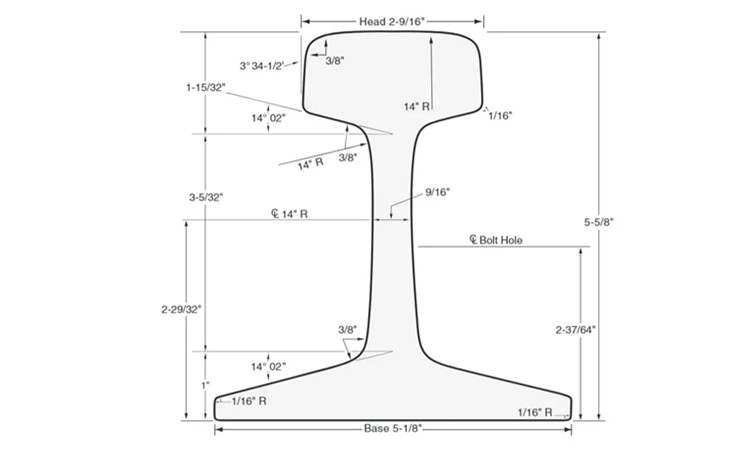

90 LBS Rail Drawing:
90 lbs rail dimension inch:
| Rail Type | Hight width (mm) | Base width (mm) | Head width (mm) | Web thickness (mm) | Weight Kg/m | Material |
| 90 ARA-A | 142.88 | 130.18 | 65.09 | 14.29 | 44.65 | 900A/1100 |
| Rail Type | 90 RA |
| Section Number | 9020 |
| Nominal Weight | 90 lbs/yd (44.65kg/m) |
| Standard Length | 39’ |
| Area in2 | 8.82 |
| Section Modulus in3 | Head: 12.6 Base: 15.2 |
| Moment of Inertia in4 | 38.7 |
90 LBS Rail Supplier:
As a professional steel rail manufacturer in China, Kingrail parts offers 90 lbs rails and other types of rails for sale. Kingrail Parts rails are sold in more than 20 countries and regions with sufficient supply capacity and fast delivery. You can purchase rails in standard or custom lengths. Don't hesitate to contact us.
