Crane rail A150 is manufactured according to European standard DIN 536 P1:1991 and has a mass of 150,30 kg/m.
Length: 12m~25m or other lengths according to customer requirements
Material: 900A, 50Mn
Standard: DIN 536 P1:1991
| Rail | Standard | Dimensiones mm | Sección S | Masa m | ||||
|---|---|---|---|---|---|---|---|---|
| H | F | K | S | cm² | kg/m | |||
| NORMA EUROPEA DIN 536 P1:1991 | ||||||||
| A150 | DIN 536 | 150 | 220 | 150 | 80 | 191,40 | 150,30 | |
Mechanical Properties
Standard length: 12.00 meters
Elongation (%): 8 minutes.
Calculated mass: 150.3 kg/m
Tensile Strength (Min): N/mm 2 : 880 minutes.
Yield point (minimum): N/mm 2: 440
Chemical Composition (%) Indicative
Carbon : 0.60 - 0.80
Silicon: < 0.50
Manganese: 0.80 - 1.30
Phosphorus: < 0.045
Sulphur: < 0.045

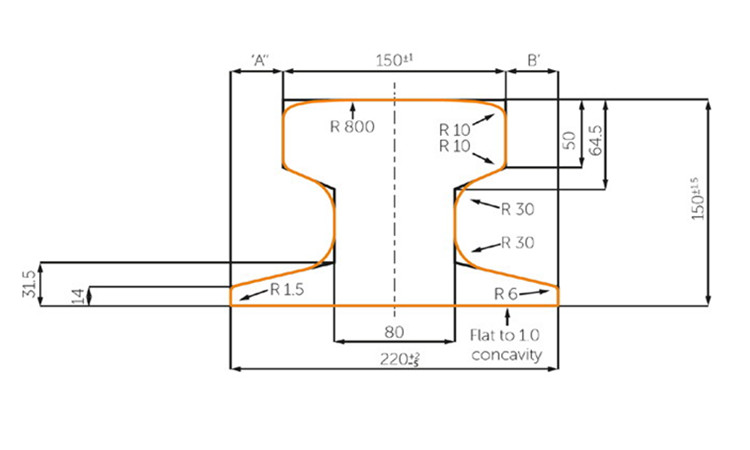

Drawing
