The ASCE 30 rail is one of the most popular ASCE rails in the US and other countries. ASCE 30 rail, also known as 30 lb/yd ASCE rail, weighs 30 lbs. per yard. Due to its modest size, the ASCE 30 rail is suitable for most standard load rail cranes and therefore sells well.
Specifications:
Rail Type: 30 as
Section number: 3040
Nominal Weight: 25 lbs/yd
Standard Length: 30' (20' and 40' also available)
Standard Drilling: 2" x 4" with 3/4" diameter hole
Splice bar length: 16-1/8"
Splice bar weight: 6 lbs/pr with hardware: 8 lbs/pr
Track Bolts: 5/8" x 2-1/2"
| Type | Dimension(mm) | Weight(kg/m) | Standard | |||
|---|---|---|---|---|---|---|
| Head | Height | Base | Waist | |||
| ASCE 30 | 42.9 | 79.4 | 79.4 | 8.4 | 15.2 | ASTM A1 |

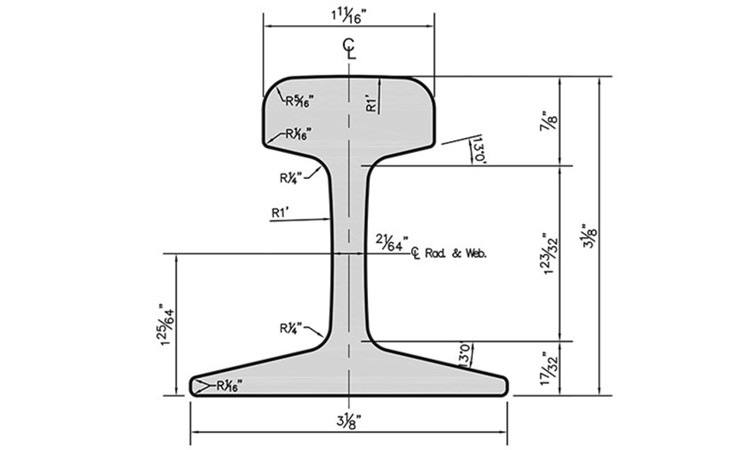

Drawings:
