Kingrail Parts is a supplier of ASCE 60 lb/yd rails from China. We can supply 60 LB ASCE rails in any length according to your requirements. We can also supply rail clamps and joint bars for 60 lb/yd ASCE rails.
60-lb/yd ASCE rail is also known as ASCE 6O rail. ASCE60 rail is a very common type of light rail. Mainly used for railway and subway construction. It can also be used for cranes and port machinery.
Specifications
Size: ASCE60 rail/rail ASCE 60
Length: 12m~25m or other lengths according to customer requirements
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Weight: 30.1kg/m
Dimensions
|
Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
ASCE60 |
107.95 |
107.95 |
60.33 |
12.3 |
30.1 |

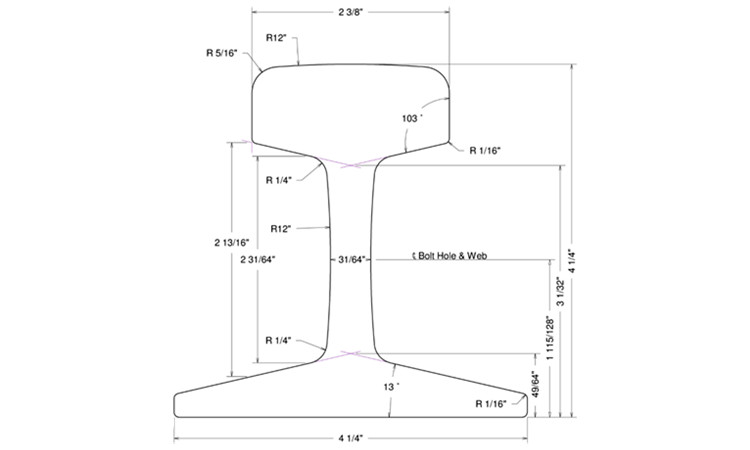

Drawings
