The ASCE40 rail is used in the mining railway line, with 700 materials, R220 or above, and 6-12 meters. We can pick up orders, sometimes there are inventory.
Specification:
Weight: 40 LBS/YD
Material: Q235B, 55Q, U71MN
Standard: Arema, ASTM A1
Length: 12m ~ 25m or other lengths according to the customer's requirements
|
Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
ASCE40 |
88.9 |
88.9 |
47.6 |
9.90 |
19.84 |

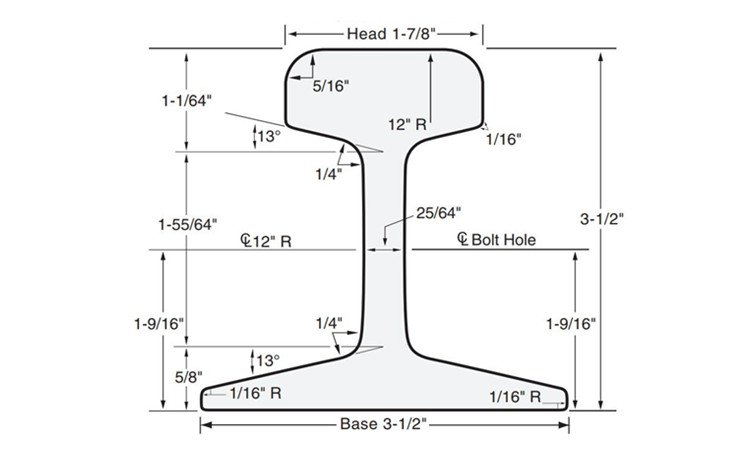

Drawing
