The performance of Arema 115 LB rail in terms of hardness, strength, wear resistance, corrosion resistance and other aspects is better than many other rails.
The 115 LB rails are mainly used for railway rails, crane rails, underground mines rails, and factories and ports.
Dimensions
|
Rail Type: 115 RE Section Number: 11525 Nominal Weight:115 lbs/yd |
Area in2: 11.25 Section Modulus in3: Head: 18.0 Base: 22.0 Moment of Inertia in4: 65.6
|
|
Standard Length: 39', 80' Standard Drilling: 3-1/2” X 6”or 3-1/2”X6" X 6”with 1-1/8”dia. holes |
|
|
Joint Bar Length: 24" or 36" Joint Bar Weight: 4-Hole bars: 68 lbs/pr with hardware: 76 lbs/pr 6-Hole bars: 102 lbs/pr with hardware: 110 lbs/pr Track Bolt:1”X 6” |

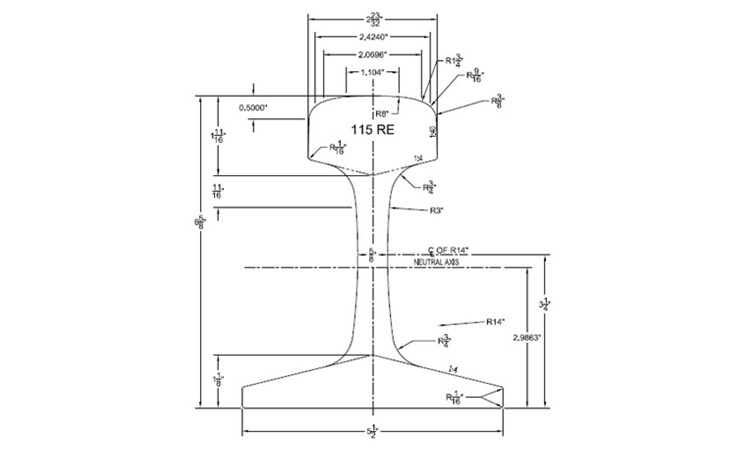

Drawing
