The 50 KG rails produced by Kingrail Parts are mostly used for the transportation of larger mine roadways and factory workshops, crane hoisting equipment, and the laying of special railway lines.
The rail hardness is R260, length is 12.5m to 25m.
Specification:
| type | weight (kg/m) | material | length (m) |
| 50kg | 51.514 | 50Mn/U71Mn | 12m/12.5m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 152 | 132 | 70 | 15.5 |

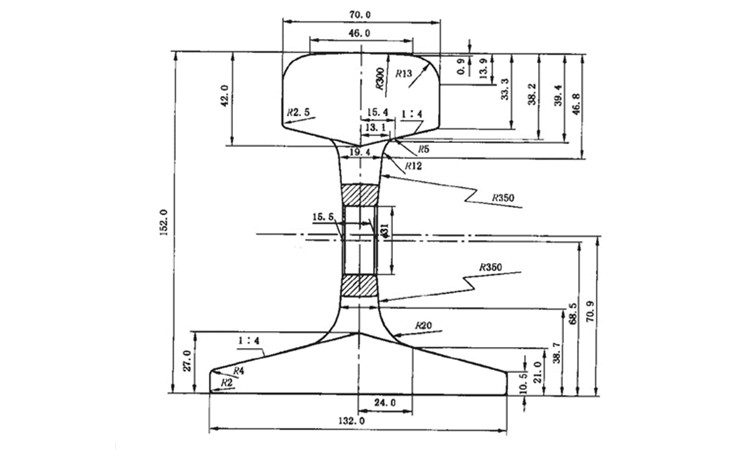

Drawing:
