The CR73 crane rail is manufactured according to ARCELOR specifications, with a mass of 73,30 kg/m.
Kingrail Parts is a JIS CR73 rail supplier from China. We can provide CR73 rails, and we can also provide related fasteners, such as: weld able rail clamps, rubber pads, etc.
Specification:
Material: U71Mn
Weight: 73.3kg/m
Length: 10-12m
Standard: JIS E1103-93/JIS E1101-93
| Profile |
|
Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| CR73 |
ArcelorMittal Specification |
135 | 140 | 100 | 32 | 93,40 | 73,30 |

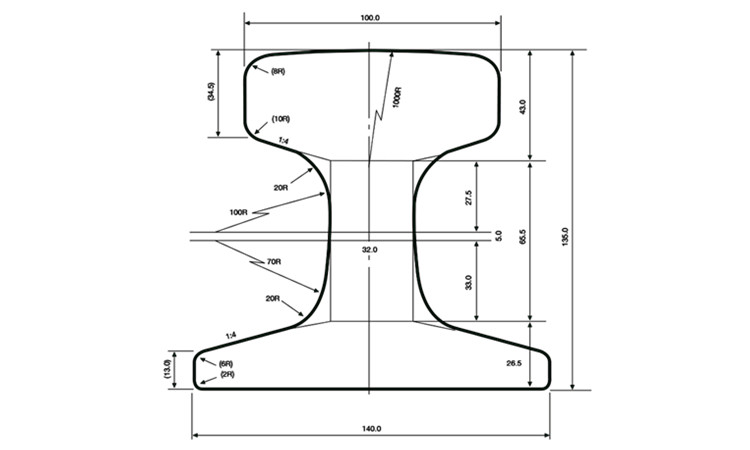

Drawing:
