The DIN5901 standard S14 rail is mainly used in railway, mining companies, heavy industry, bridge cranes, railway and tunnel industries, transportation authorities and port facilities operators.
We can supply S14 rails at high quality and competitive price. The S14 rail is one of the light rails. The material of the S14 rail is 55Q.
Specification:
| DIN Standard Rail | |||||||
| Standard | DIN5901:1955-11 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| S14 | 38 | 80 | 70 | 9 | 14 | 55Q | 6-12 |

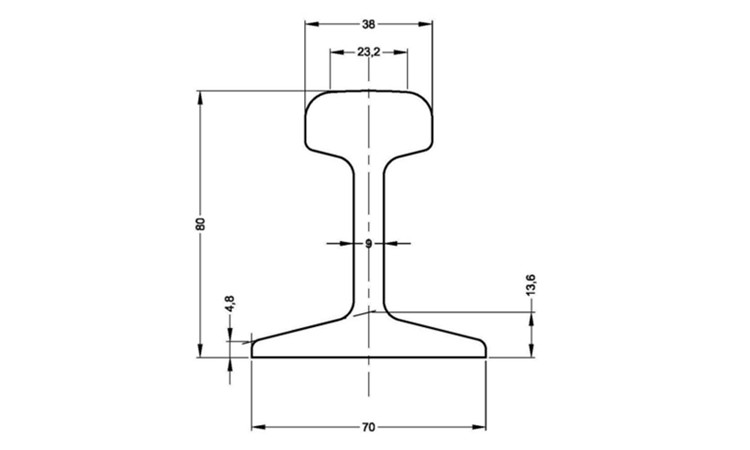

Drawing:
