The ASCE40 rail is mainly used for light cranes, mining rails, factory buildings, ports, railways, etc.
Kingrail Parts can provide American standard steel rails, including ASCE25 rails, ASCE30 rails, ASCE40 rails, ASCE50 rails, ASCE60 rails, etc.
Dimensions
| Standard | ASTM A1/AREMA | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |

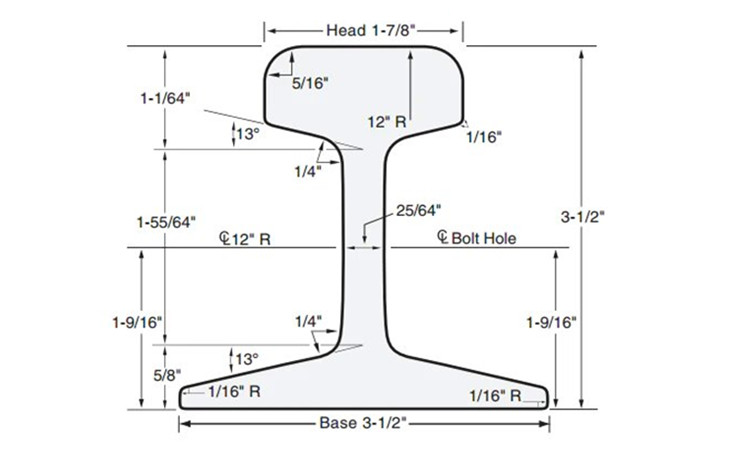

Drawing
