The QU120 crane rail can also be used in large-scale projects, hoisting containers at docks, laying large-scale machinery and equipment transportation lines, etc., and is specially used for gantry cranes.
Kingrail Parts can provide QU120 crane rail and other specifications of crane rail, such as QU70 crane rail, QU80 crane rail and QU100 crane rail.
Dimensions
|
type |
weight (kg/m) |
material |
length (m) |
|
QU120 |
118.10 |
U71Mn |
12 |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thickness (mm) |
|
170 |
170 |
120（129） |
44 |
|
Size |
Rail Height |
Bottom Width |
Head Width |
Web Thickness |
Weightkg/m |
|
QU120 |
170 |
170 |
120（129） |
44 |
118.10 |

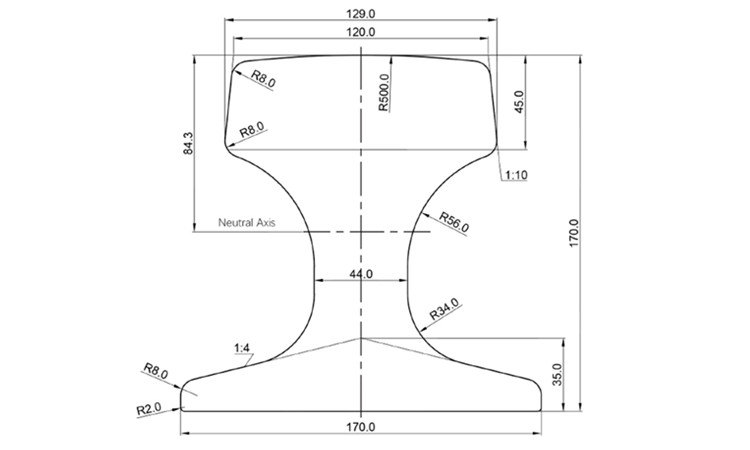

Drawing:
