Crane rail A120 is manufactured according to European standard DIN 536 P1:1991 with a mass of 100 kg/m.
Kingrail Parts is a professional rail supplier. We can provide high quality A120 rails.
Specification:
Material: 700/900A/1100
Weight: 100kg/m
Length: 10-12m
Standard: DIN536-1-1991
Dimensions:
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| A120 | 100 | 700/900A/1100 | 10-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 120 | 220 | 105 | 72 |

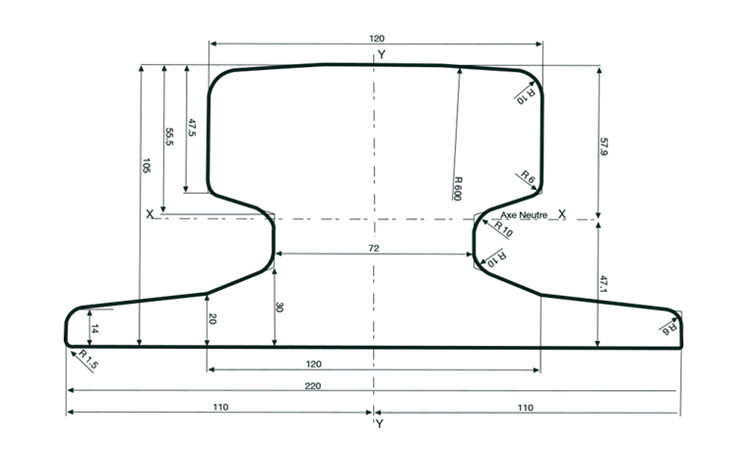

Drawing:
