The light rail ASCE 60 is manufactured to the American standard ASCE with a mass of 29.76 kg per meter, or 60 pounds per yard.
Kingrail Parts can supply ASCE 60 LB Rail with good quality and competitive price.
Specification:
Type: Light Rail
Material: 700
Weight: 29.76kg/m
Standard: ASTM A1/AREMA
Dimensions
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| 60 LBS Rail(ASCE 60) | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 |

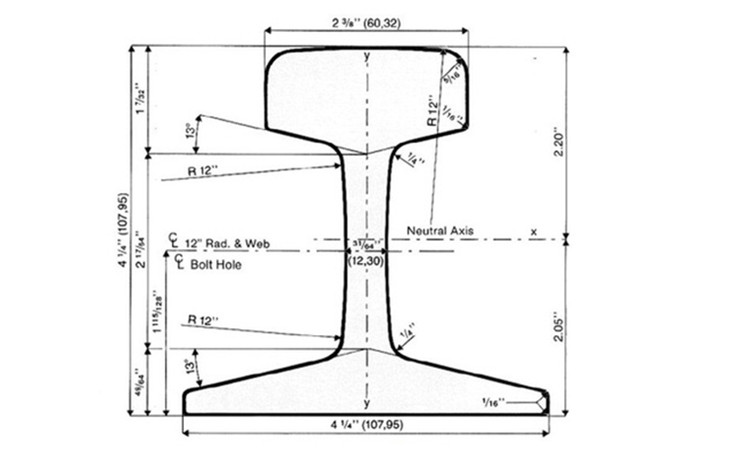

Drawing
