30kg rails are mainly used for temporary transport lines and light locomotive lines in forest areas, mining areas, factories and construction sites.
The 30kg rails produced by Kingrail Parts meet the Japanese Industrial Standard E1101-M and are 12.19 meters long.
Specifications:
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 30kg | 30.1 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 60.33 | 107.95 | 107.95 | 12.3 |

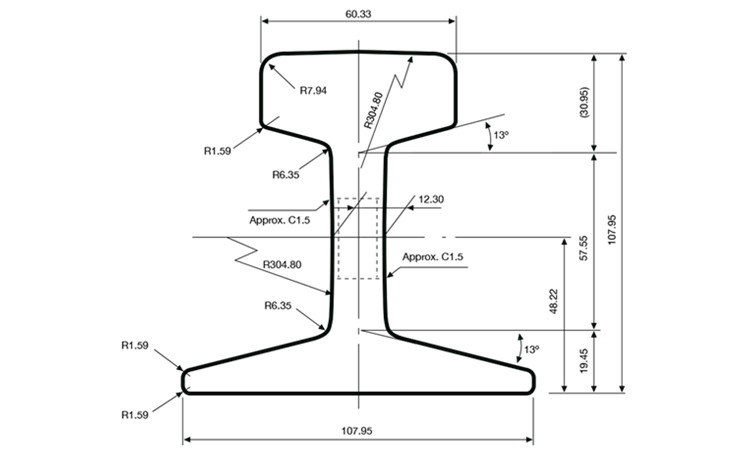

Drawings:
