4kg/m rail is used for amusement park trains, unit weight is 4.3kg/m. The length is 6m, and the material is Q235.

Kingrail Parts can produce various specifications of light rails. Such as: 4kg rail, 6kg rail, 8kg rail, 12kg rail, 15 rail, etc.

Specifications

Material: Q235B

Type: Light rail

Weight: 4.3 kg/m

Length: 6m

Dimensions

Rail height: 65mm

Bottom width: 54mm

Head width: 25mm

Bolt hole diameter: 16mm

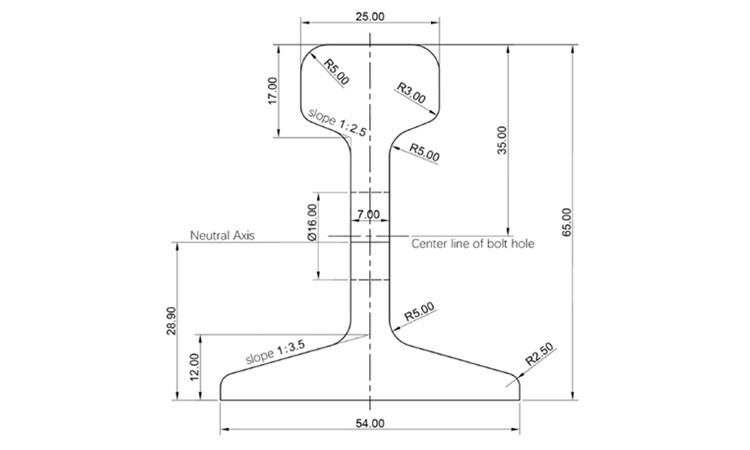

Drawings:
