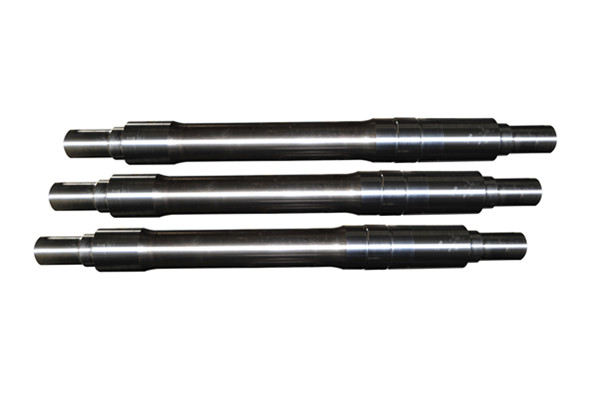

Railway axle is the key component of railway locomotives. It can be assembled as a wheel set system with wheels, bearing, axle boxes, brake discs, and gear systems. The axle is used to pass the driving torque to the wheels, and keep the wheels against each other and the position of the body.
The axle can be divided into a wagon axle, coach axle and locomotive axle according to railway vehicles.
Kingrail Parts can supply almost all types of axles according to major global specifications. Such as:
1. TB/T 2945 China Railway Corporation LZ50 axle and billet technical conditions
2. AAR M-101 axle, carbon steel, heat treatment, US Railway Association
3. UIC 811-1 trailer and trailer axle supply technical specifications, the International Railway Alliance
4. BS 5892-1 traction and trailing stock axle specification, British standard
5. EN 13261 Railway application wheelset and bogies axles Product Requirements, European Standards
6. JIS E4502 railway locomotive rolling stock axle -quality requirements, Japanese industrial standards
7. IRS 16/95 Indian railway carriages and wagons axle standard specifications, Indian railways
AAR standard solid axles
Kingrail Parts provides standard axles that fully comply with AAR M-101 specifications, which have the following features:
1. D, E, F, G, and K.
2. Material: AAR M-101 F-Class
3. Meter gauge, standard gauges and broad gauge.
4. Test certificate: chemical composition test, tensile strength test, ultrasonic detection, magnetic detection, surface and size
5. Rough axle, semi -finished axle, finished axle
6. Freight wagon axle, coach axle, locomotive axle
European standard solid axle
Kingrail Parts provides a standard axle that fully complies with European norms, which has the following features:
1. Standard: EN13261/UI 811-1/BS 5892 Part1
2. Material: EA1N /EA4T
3. Meter gauge, standard gauge, broad gauge
4. Test certificate: chemical composition test, tensile strength test, impact test, ultrasonic detection, magnetic detection, surface and size
5. Fatigue features, residual stress
6. Rough axle, semi -finished axle, finished axle
7. Freight wagon axle, coach axle, locomotive axle
Hollow axle
Kingrail Parts provides a standard axle that fully complies with European norms, which has the following features:
1. The hollow axle is one of the key components of high -speed coachs. It is mainly used for the hollow axle of high -speed power transmission system. The advantage of the hollow axle is light quality.
2. Kingrail Parts can provide various finished products and semi -finished products for railway rolling stocks.
3. The hollow axle can be manufactured according to EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, and BS 5892-1.
