115 RE (TR57) American standard heavy rail is widely used in South America. It is a standard profile that meets AREMA. As a kind of heavy rail, it has high strength and is mainly used for mining rails.
115RE (115LB) rail is superior to many other rails in terms of hardness, strength, wear resistance, and corrosion resistance. It can increase the service life of heavy-duty railway lines such as iron mines and coal mines.
Specifications:
Material: high strength, intermediate, standard
Standard: AREMA, ASTM
Grade: 900A/1100
Model: TR57 (115 RE) 115LB
Type: Heavy rail
Market: Americas
Material: 900A
Certificate: 3.1 MTC/3.2 by Lloyd’s regiester inspection
Dimensions: AREMA 115lb rail, AREMA 115RE rail. TR57 rail
Length: 12m~25m or other lengths according to customer requirements
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length （m） |
| 115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |

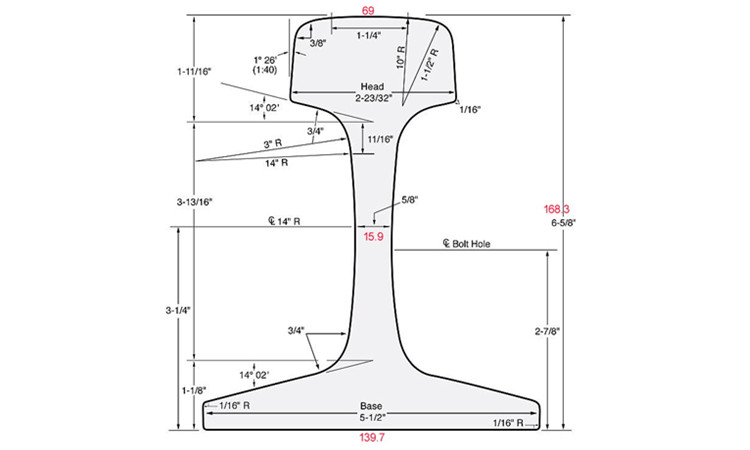

Drawings:
AREMA Rail Suppliers:
As one of the most professional steel rails suppliers in China, Kingrail parts can produce AREMA Rail with complete specifications, for example: ASCE25 30 40 60 75 85 90RA 115RE 136RE 175LBS.
