AREMA 136lb 136RE TR68 steel rail is mainly used as railway rails, crane rail, underground mining tracks, plant, port, etc. Kingrail Parts could offer American standard rails, including AREMA 115RE rail, AREMA 119RE rail, AREMA 132RE rail, AREMA 133RE rail , AREMA 136RE rail, AREMA 140RE steel rail, AREMA 141RE rail., etc.
TR68 (136 RE) American standard heavy rail is widely used in the Americas, we can produce to order, the length and hardness can be according to your requirements.
Specification:
Product name: AREMA 136lb rail, AREMA 136RE rail, TR68 rail
Size: AREMA 136lb rail, AREMA 136RE rail. TR68 rail
Type: Heavy Rail, Crane Rail
Standard: AREMA
Height: 185.70mm
Weight: 67.50kg/m
Length: 12m~25m or other length according to customers’ requirement
Grade: High Strength, Intermediate, Standard
Usage: Railway rail, crane rail, mining tracks, automatic warehouse, etc.

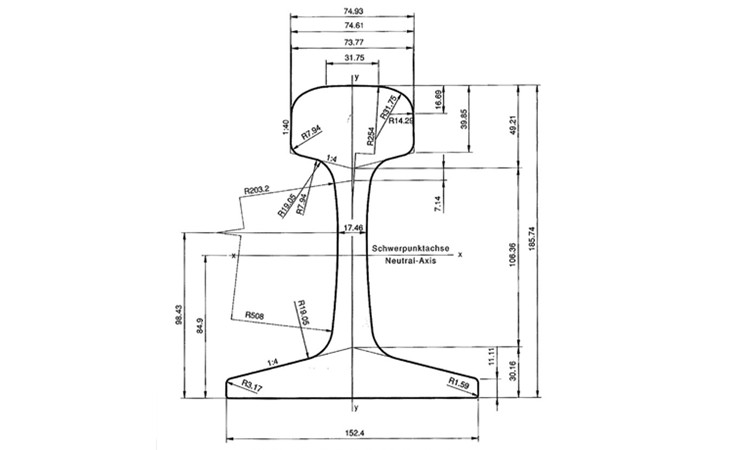

Drawing:
Dimensions:
| Rail type | Head mm | Height mm | Base mm | Web mm | Weight Kg/m | material | length |
| 136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
136RE Rail Joint Bar:
136RE rail joint bar available: common lengths: 36inch (6 holes), 24inch (4 holes).
136RE Rail Manufacturer:
As a largest steel rail supplier in China, Kingrail parts can supply all kinds of steel rails, including light rails, heavy rails, such as American AREMA 136lb 136RE TR68 steel rails, crane rails of different standards and specifications.
