A75 crane rails are mainly used in crane industry and ports as crane rails.
Kingrail Parts is a Rail A75 supplier from China, it can supply all kinds of rails, including light rail, heavy rail, crane rail, such as DIN536 A75 crane rail, and other different standards and specifications.
Specifications:
Size: A75 Crane Rail
Length: 12m~25m or other lengths according to customer requirements
Material: 900A, 50Mn
Weight: 56.2kg/m
Standard: DIN 536 P1:1991
Uses: cranes, mine rails, automatic warehouses, etc.
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| A75 | 56.2 | 700/900A/1100 | 10-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 75 | 200 | 85 | 45 |

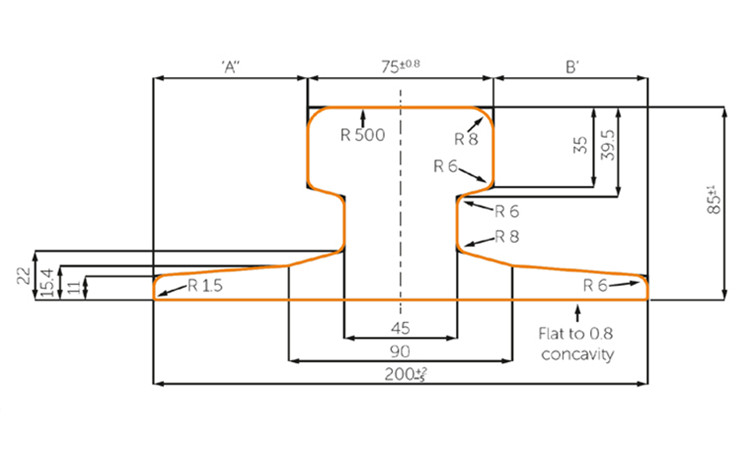

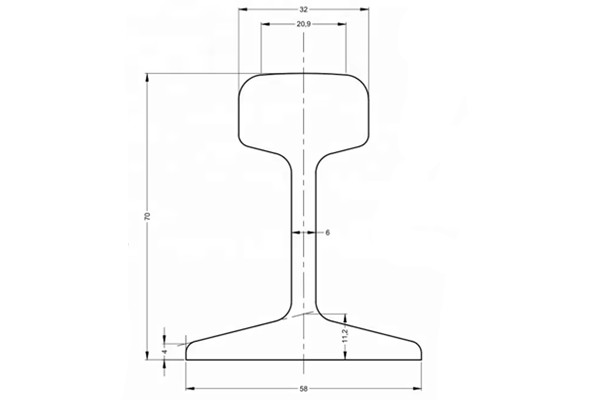

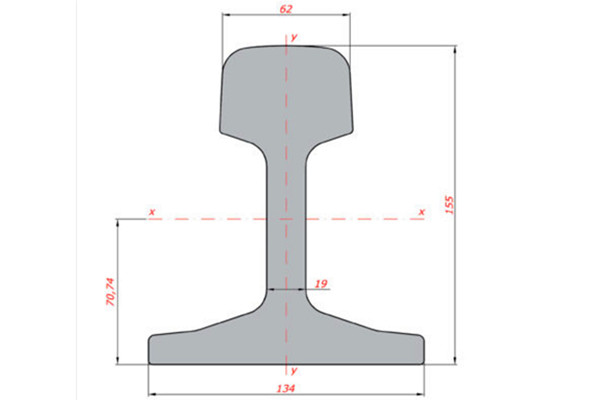

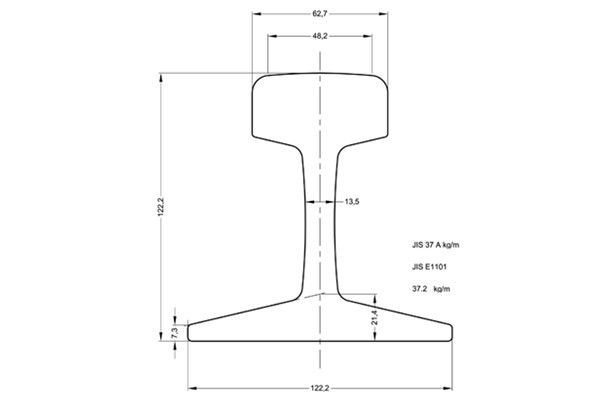

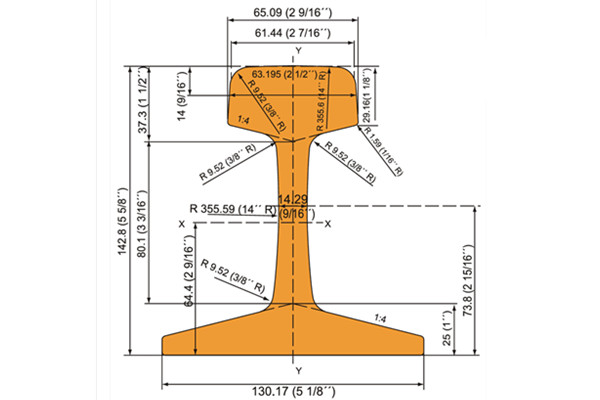

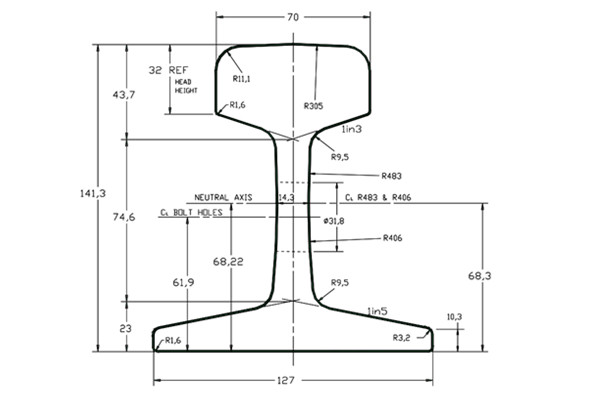

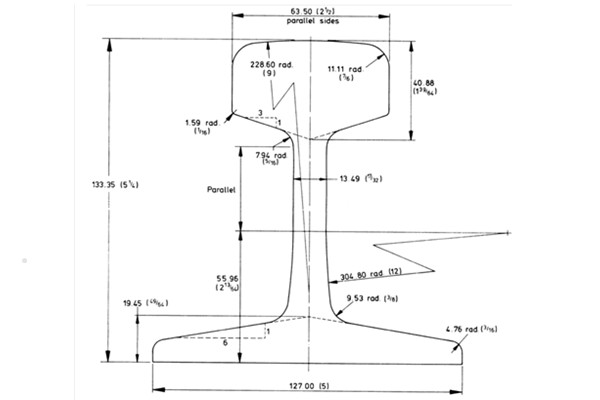

Drawings:
