BS75R rails belong to the BS11-1985 standard and are used for mining railway lines or subways, etc. The material is 900A, the hardness is greater than 880 N/mm2, and the length can be 8-25 meters.
Kingrail Parts can supply all kinds of rails including light rails, BS standard rails, BS75R rails, heavy rails, crane rails of different standards and specifications.
Specification:
Standard: BS11
Material: 700, 900A
Weight: 37.041 kg/m
Length: 5-25m or other lengths according to customer requirements
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length （m） |
| BS75R Rail | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |

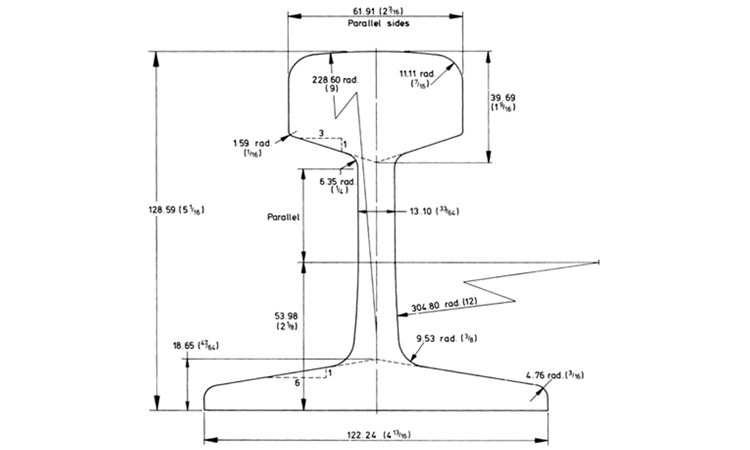

Drawing:
