S18 light rails are used in ore transportation. We usually have a large amount of inventory, the materials are Q235B and 55Q. There are 6m and 8m in length.
Kingrail Parts can design the railway line according to your requirements, and can build a small mining railway line and a crane mobile line, and it can also provide all supporting fasteners.
Specification:
| Type of light rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | F | K | S | cm² | kg/m | |||
| European standard EN 13674-1 | ||||||||
| S18 | DIN 5901 | 93 | 82 | 43 | 10 | 23,10 | 18,20 | |

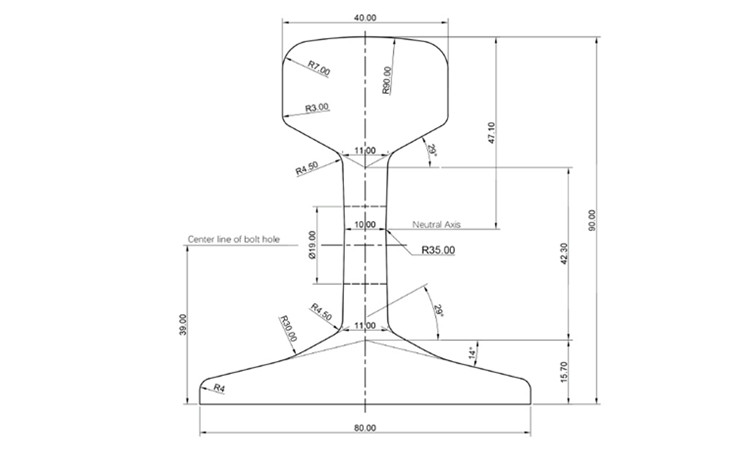

Drawing:
