6kg/m rail is used for amusement park trains.
Our 6kg rail is made of Q235. The unit weight of 6.2kg/m or 6.8kg/m, length of 6m.
Specifications:
Material: 55Q
Weight: 5.98kg/m
Length: 6-12m
Standard: GB11264-89/YB222-63
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 6kg | 5.98 | Q235 | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 25.4 | 50.8 | 50.8 | 4.76 |

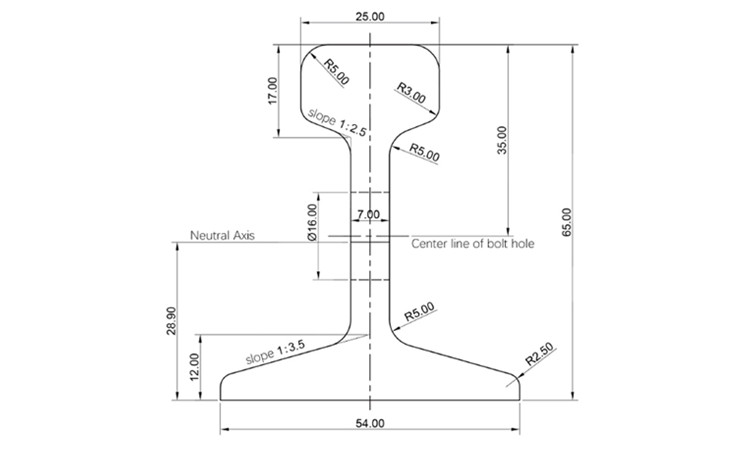

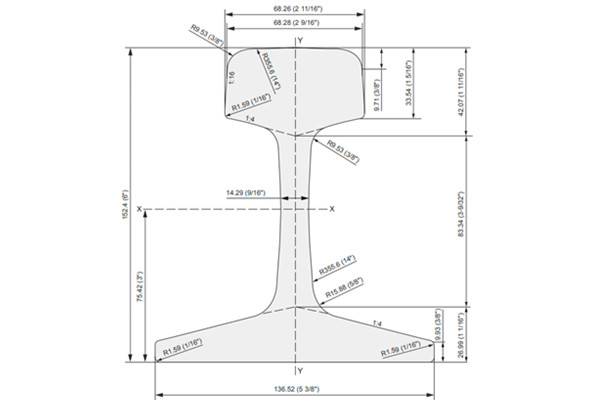

Drawing:
