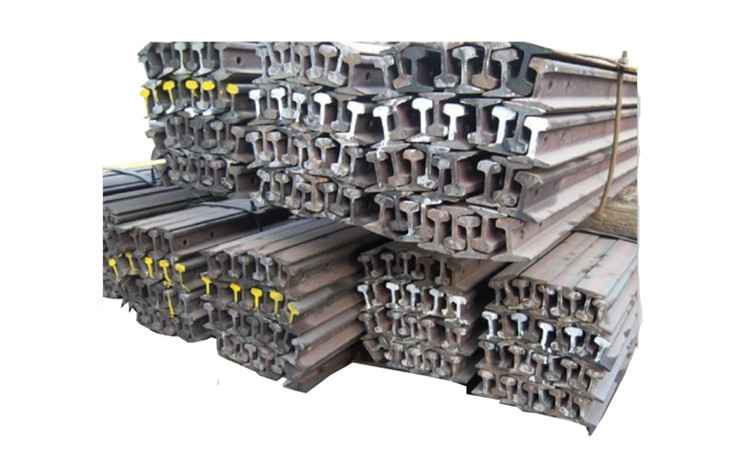

Kingrail Parts is one of the largest steel rails manufacturers and suppliers in China. Steel Rail made by Kingrail Parts is available in various sizes and materials, and can be used for various purposes such as general passenger railways, high-speed railways, and heavy-duty railways.
Steel Rails Definition:
Steel rails are often called railway rails or railway tracks. It is the most important part of railway construction. The heavy traffic on the railway causes a heavier load on the railway. The quality of steel rails must be the first priority.
Steel Rails Application:
1. Light rail is mainly used for light rails such as light rails in forest areas, mines, and construction areas or temporary traction rails.
2. Heavy rails are mainly used for trunk lines and mine rails that require heavy loads.
3. Crane tracks are mainly used to lay tracks for cranes, such as railway cranes, bridge cranes, gantry cranes and other types of cranes.
Type of steel track:
Chinese steel rail standards:
1. Crane track: QU120, QU100, QU80, QU70. They are mostly composed of manganese steel.
2. Heavy rail: 38kg, 43kg, 50kg standards are widely used. In addition, some high-speed and large-capacity lines all use 60kg rails.
3. Light rail: Light rail can also be divided into two types: GB (Chinese National Standard) 9kg, 12kg, 15kg, 22kg, 30kg/m and YB (Ministry of Metallurgy Standard) 8, 18, 24kg/m.
Foreign steel rail standards:
In the world railway track market, there are many typical types. For example, the British BS series (such as 90A, 80A, 75A, 75R, 60A, etc.), the German DIN series, the American ASCE series (such as 115RE, 136RE), the Japanese JIS series and the International Railway Union UIC series (such as UIC54, UIC60).
Chinese standard steel rail:
1. Crane rail: QU120, QU100, QU80 and QU70. They are generally made of manganese steel, and the largest unit weight is QU120 up to 118kg/m.
2. Heavy rail: 38kg, 43kg and 50kg rails are the most commonly used rails. 60kg and 75kg steel rails are generally used for high-speed, large-volume railways
3. Light rail: GB standard standard steel rail, YB standard steel rail. GB standard rails (Chinese National Standards) are 9, 12, 15, 22, 30kg/m. YB standard rails (standards of the metallurgical sector) are 8, 18, 24kg/m, etc.
International standard steel rail:
Internationally, as each country has its own steel rail production standards, the classification methods are not the same. Such as: British standard: BS series (90A, 80A, 75A, 75R, 60A, etc.) German standard: DIN series crane rail. International Union of Railways: UIC series. American Standard: ASCE series. Japanese standard: JIS series.
American Standard Steel Rail:
Specifications: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBs
Standard: ASTM A1, AREMA
Material: 700/900A/1100
Length: 6-12m, 12-25m
|
Size |
Dimensions (mm) |
Weight (kg/m) |
|||
|
A |
B |
C |
t |
||
|
ASCE25 |
38.1 |
69.85 |
69.85 |
7.54 |
12.4 |
|
ASCE30 |
42.86 |
79.38 |
79.38 |
8.33 |
14.88 |
|
ASCE40 |
47.62 |
88.9 |
88.9 |
9.92 |
19.84 |
|
ASCE60 |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |
|
ASCE75 |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
|
ASCE85 |
65.09 |
131.76 |
131.76 |
14.29 |
42.17 |
|
90RA |
65.09 |
142.88 |
130.18 |
14.29 |
44.65 |
|
115RE |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
|
136RE |
74.61 |
185.74 |
152.4 |
17.46 |
67.41 |
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
UIC standard steel rail:
Specification: UIC50/UIC54/UIC60
Standard: UIC860
Material: 900A/1100
Length: 12-25m
|
Size |
Dimensions (mm) |
Weight (kg/m) |
|||
|
A |
B |
C |
t |
||
|
UIC |
54 |
70 |
159 |
16 |
54.43 |
|
UIC |
60 |
74.3 |
172 |
16.5 |
60.21 |
German standard steel rail:
Specifications: A55, A65, A75, A100, A120, S10, S14, S18, S20, S30, S33, S41R10, S41R14, S49
Standard: DIN536 DIN5901-1955
Material: ASSZ-1/U75V/U71Mn/1100/900A/700
Length: 8-25m
British standard steel rail:
Specifications: BS50O, BS60A, BS60R, BS70A, BS75A, BS75R, BS80A, BS80R, BS90A, BS100A, BS113A
Standard: BS11-1985
Material: 700/900A
Length: 6-18m 8-25m
|
Size |
Dimensions (mm) |
Weight (kg/m) |
|||
|
A |
B |
C |
t |
||
|
BS50O |
52.39 |
100.01 |
100.1 |
10.32 |
24.833 |
|
BS60A |
57.15 |
114.3 |
109.54 |
11.11 |
30.618 |
|
BS60R |
57.15 |
114.3 |
109.54 |
11.11 |
29.822 |
|
BS70A |
60.32 |
123.82 |
111.12 |
12.3 |
34.807 |
|
BS75A |
61.91 |
128.59 |
114.3 |
12.7 |
37.455 |
|
BS75R |
61.91 |
128.59 |
122.24 |
13.1 |
37.041 |
|
BS80A |
63.5 |
133.35 |
117.47 |
13.1 |
39.761 |
|
BS80R |
63.5 |
133.35 |
127 |
13.49 |
39.674 |
|
BS90A |
66.67 |
142.88 |
127 |
13.89 |
45.099 |
|
BS100A |
69.85 |
152.4 |
133.35 |
15.08 |
50.182 |
|
BS113A |
69.85 |
158.75 |
139.7 |
20 |
56.398 |
Australian steel rail:
Specifications: 31kg, 47kg, 50kg, 60kg, 68kg, 73kg, 86kg, 89kg
Standard: AS1085
Length: 8-25m
|
Size |
Dimension(mm) |
Weight(kg/m) |
Material |
Length(m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
31KG |
63.5 |
117.5 |
108 |
11.5 |
31.5 |
900A/1100 |
8-25 |
|
47KG |
70 |
141.3 |
127 |
14.3 |
46.5 |
900A/1100 |
8-25 |
|
50KG |
70 |
154 |
127 |
15 |
50.8 |
900A/1100 |
8-25 |
|
60KG |
70 |
170 |
146 |
16.5 |
61 |
900A/1100 |
8-25 |
|
68KG |
73.4 |
186 |
152 |
17.5 |
67.6 |
900A/1100 |
8-25 |
|
73KG |
70 |
157 |
146 |
32 |
73.63 |
900A/1100 |
8-25 |
|
86KG |
102 |
102 |
165 |
84.11 |
85.5 |
900A/1100 |
8-25 |
|
89KG |
102 |
114 |
178 |
51 |
89.81 |
900A/1100 |
8-25 |
Indian steel rail:
Specifications: ISCR50, ISCR60, ISCR70, ISCR80, ISCR100, ISCR120
Standard: IS3443-1980
Length: 9-12m
South African Rail:
Specifications: 15kg, 22kg, 30kg, 40kg, 48kg, 57kg
Standard: ISCOR
Length: 9-25m
Japanese and Korean standard rails:
Specification: 15kg, 22kg, 30kg, 37A, 50N, CR73, CR100
Standard: JIS E1103-91/JIS E1101-93
Material: implement JIS E standard
Length: 9-10m 10-12m 10-25m.
|
Size |
Dimensions (mm) |
Weight (kg/m) |
|||
|
A |
B |
C |
t |
||
|
15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
|
22KG |
50.8 |
93.66 |
93.66 |
10.72 |
22.3 |
|
30A |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
|
37A |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
|
50N |
65 |
153 |
127 |
15 |
50.4 |
|
CR73 |
100 |
135 |
140 |
32 |
73.3 |
|
CR100 |
120 |
150 |
155 |
39 |
100.2 |
