The Indian Railways designed the 52 kg/m weight section in 1959 to meet the requirements of heavier and faster traffic at that time. The railway is proposed for use on all BG main lines with future speeds up to 130 km/h and traffic density of 20 to 25 GMT. Its cross-sectional area is 6615 square millimeters
The 52kg rail is suitable for Trolley, Gantry, Overhead Cranes, Railway Siding, Rail Pole.
Kingrail Parts can provide 52kg rail, 60kg rail, etc.
Specification:
Type: 52kg rail
Material: 50Mn/U71Mn
Weight: 51.89KG/M
Length: 12.5-25m
|
Profile |
Weight Kg/Mtrs |
Top Width (mm) |
Base Width (mm) |
Height Width(mm) |
Web Width(mm) |
|
52 KG |
51.89 |
67 |
136 |
156 |
15.5 |

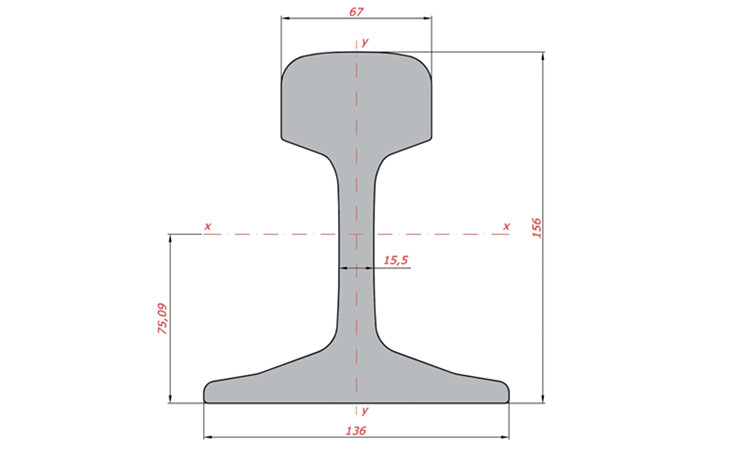

Drawing:
