The P43 rail is a standard railway rail of China, which is the same as the GOST R43 rail. It is usually used in the mining rail or port lifting track.
We are professional rail suppliers in China. We have P43 rail in inventory that can be delivered in time, but the length is 12.5m, and the material is U71MN or 50 million.
Dimensions:
| Type |
Height (mm) |
Base Width (mm) |
Head Withd (mm) |
Web(mm) |
Theoretical Weight(kg/m) |
Cross-Sectional area(cm2) |
Length (m) |
Materials |
| P43 | 140 | 114 | 70 | 14.5 | 44.653 | 57.0 | 12.5 |
50Mn U71Mn |

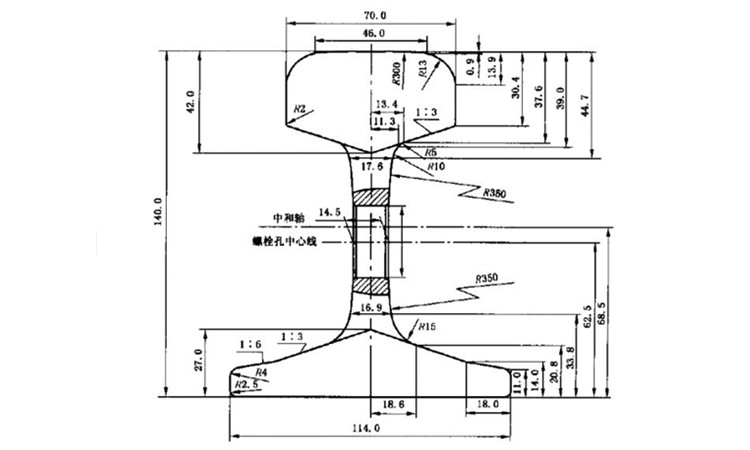

Drawing:
